Heavy Cranes – Maximum Lifting Power

Engineered for demanding jobs, PALFINGER heavy cranes deliver unmatched strength, durability, and precision. With advanced safety features and versatile control options, they provide reliable performance for large‑scale lifting and industrial applications.

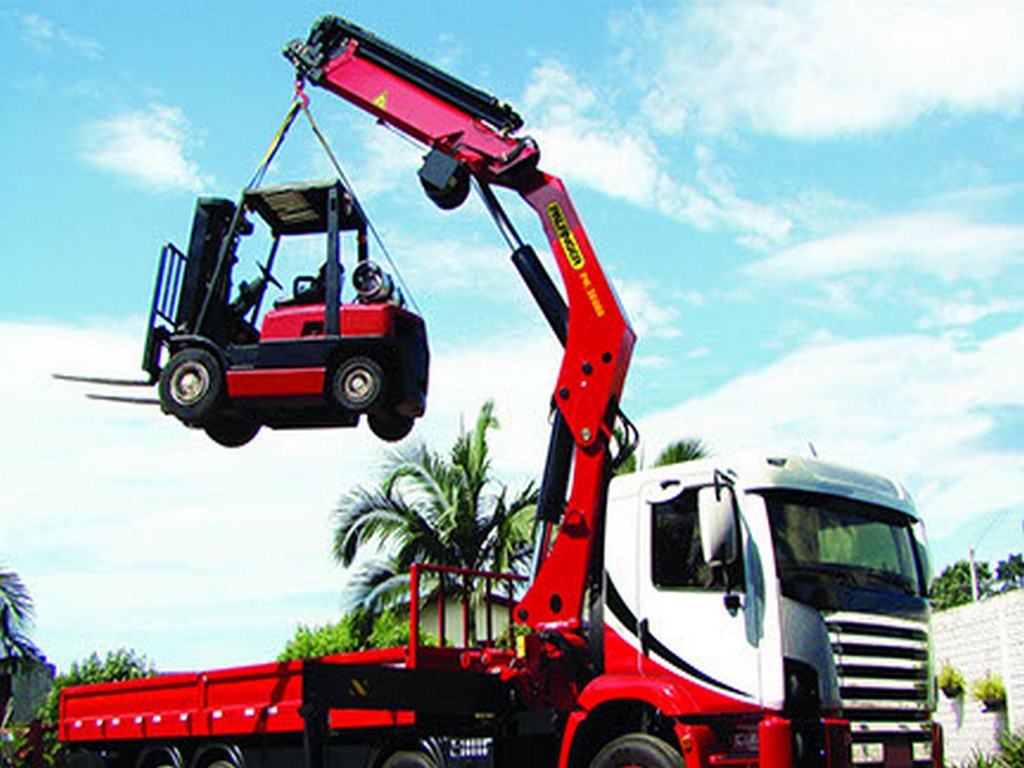

PK 36080 HIGH PERFORMANCE

Powerful performance with low dead weight and high efficiency.

High value retention due to KTL coating
Additional applications due to Power Link Plus
Maximum utilisation of the working range due to HPSC
Shorter load cycle times due to High Speed Extention

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Technical Data

Max. lifting moment - 34.8mt
Max. lifting capacity - 8500kg
Max. hydraulic outreach - 14.2m
Max. manual outreach - 20.7m
Slewing angle - 400°
Slewing torque - 3.8mt

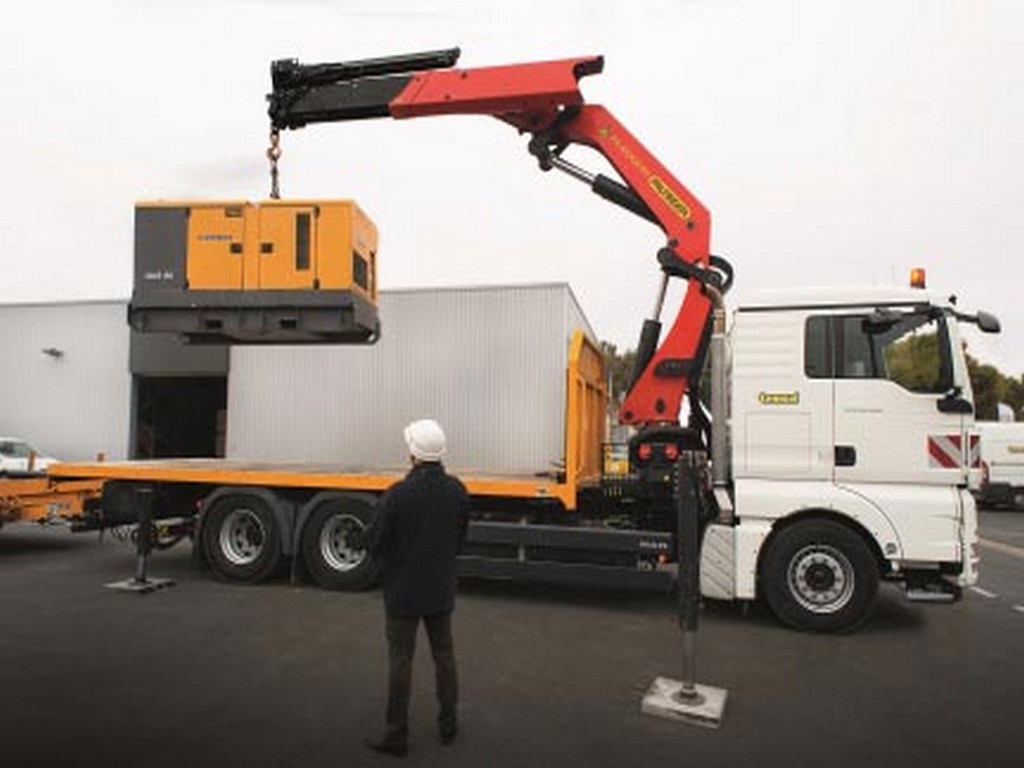

PK41002 EH

A perfect combination of power and profitability.

Increased operating times due to maintenance-free extension system
High value retention due to KTL coating
Additional applications due to Power Link Plus
Maximum utilisation of the working range due to HPSC
Designed and optimised for non-CE markets

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Technical Data

Max. lifting moment - 38.4mt
Max. lifting capacity - 14600kg
Max. hydraulic outreach - 16.3m
Max. manual outreach - 23.3m
Slewing angle - 400°
Slewing torque - 4.0mt

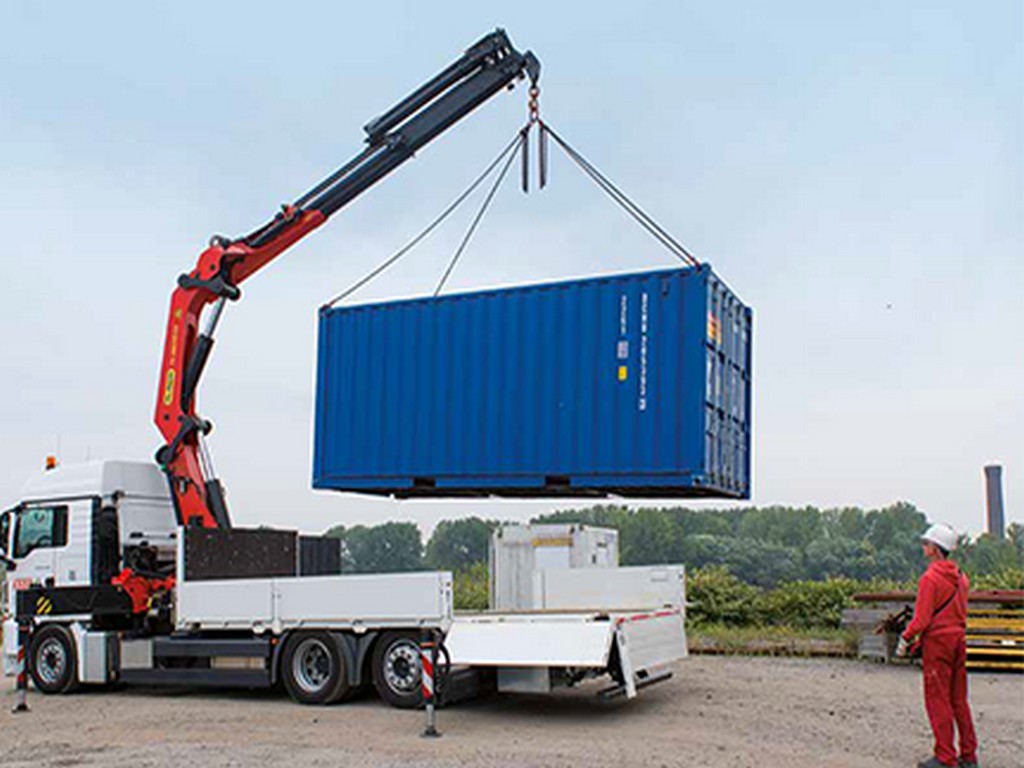

PK 44502 HIGH PERFORMANCE

A perfect combination of electronics and hydraulics allows high lifting power and Maximum profitability.

Additional applications with Power Link Plus
Higher payloads due to intelligent lightweight design
High degree of user-friendliness thanks to optional radio remote control

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Technical Data

PK 580 TEC

It is one of the precision experts in the heavy-duty crane segment.

The TEC crane, like all its siblings, is in a league above the crane designation. With this crane we have optimally used previous knowledge and integrated the brand new PALTRONIC 180 with the precise LX-6 CONTROL VALVE.

This makes numerous new assistance systems possible, which again significantly increase the comfort of the PALFINGER TEC crane operator. The unmistakably elegant and functional design of the P-Profile crane also makes the PK 580 TEC something very special.

Technical Data

Max. lifting moment - 55.5mt
Max. lifting capacity - 20000kg
Max. hydraulic outreach - 21.2m
Max. manual outreach - 33.7m
Slewing angle - Continuous
Slewing torque - 5.9mt

Stabilizer spread (std) - 7.8m
Fitting space required (std) - 1.44m
Width folded - 2.55m
Max. operating pressure - 385bar
Recommended pump capacity - From 90 l/min to 120 l/min
Dead weight (std.) - 4670kg

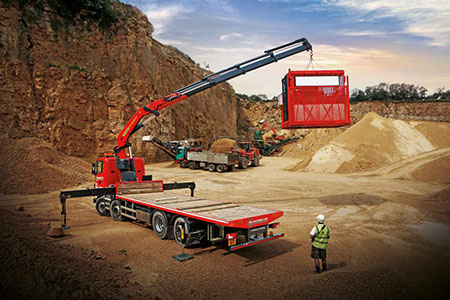

PK 63002 EH HIGH PERFORMANCE

The continuous slewing system increases the efficiency in use during the crane’s entire lifetime.

More effcient and faster due to continuous slewing system
More lifting power due to E-HPLS
Practical and attractive due to Functional Design
High value retention due to KTL coating

Technical Data

Max. lifting moment - 59.4mt
Max. lifting capacity - 22000kg
Max. hydraulic outreach - 20.4m
Max. manual outreach - 25.1m
Max. outreach (with fly jib) - 30.4m
Slewing angle - ∞

Slewing torque with 1 gear - 4.5mt
Slewing torque with 2 gears - 7.0mt
Stabilizer spread (std) - 8.6m
Max. operating pressure - 350bar
Dead weight (std.) - 5040kg
Width folded - 2.55m

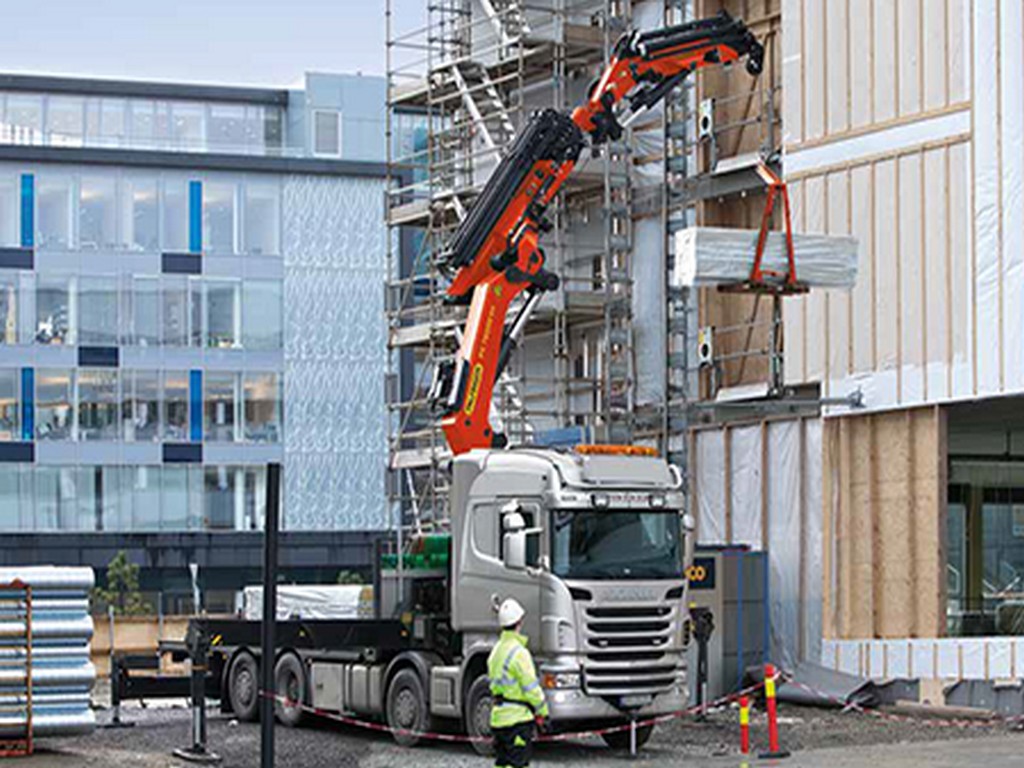

PK 76002 EH HIGH PERFORMANCE

Functional Design. For service friendliness, best appearance and high value retention.

Additional applications due to Power Link Plus
Maximum utilisation of the working range due to HPSC
Practical and attractive due to Functional Design
More lifting power due to E-HPLS

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Technical Data

Max. lifting moment - 71.6mt
Max. lifting capacity - 23000kg
Max. hydraulic outreach - 20.4m
Max. manual outreach - 25.1m
Max. outreach (with fly jib) - 30.4m
Slewing angle - ∞

Slewing torque with 1 gear - 4.5mt
Slewing torque with 2 gears - 7.0mt
Stabilizer spread (std) - 8.6m
Max. operating pressure - 350bar
Dead weight (std.) - 5910kg
Width folded - 2.55m

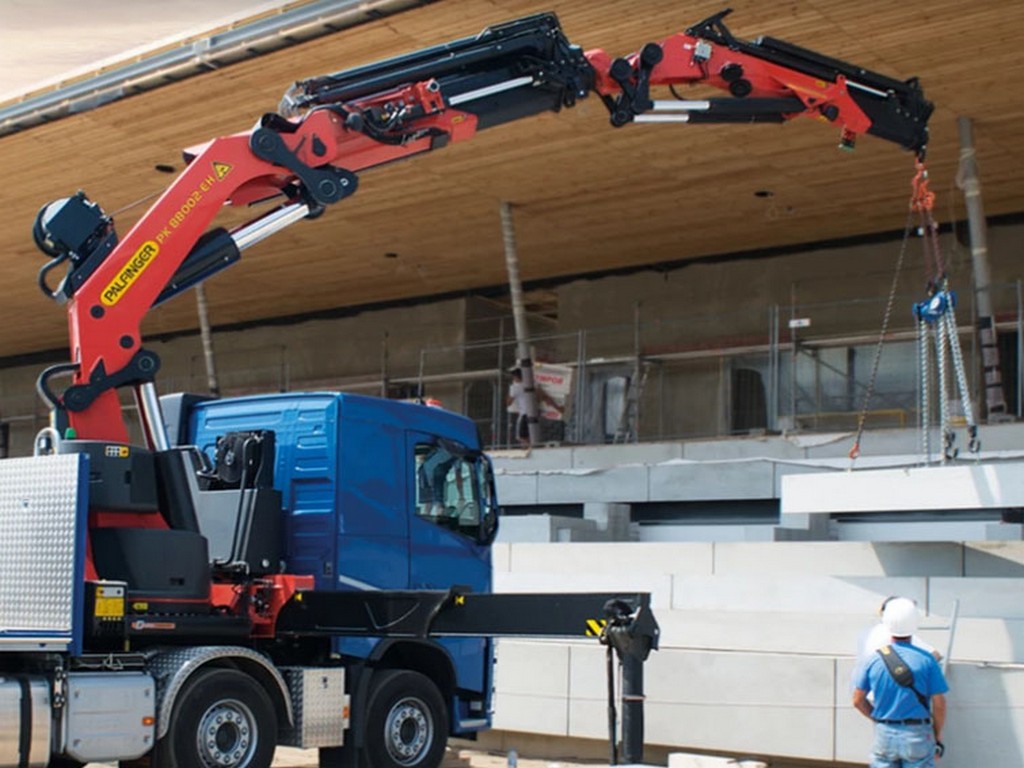

PK 88002 EH HIGH PERFORMANCE

The High Performance Stability Control (HPSC) is a fully proportional system for monitoring the stability of the crane vehicle. Sensors for proportional path measurement in the stabilizer supports permit completely variable support positioning. Hence, the permissible, safe working range can be calculated for any support situation.

The HPSC system calculates the permissible working range for any slewing angle of the boom system and for any support situation. The position of the stabilizer support is detected by means of a cable extension transducer or magnetostrictive position sensor. Based on the intelligent calculation algorithm developed by PALFINGER, it works more efficiently than comparable systems that are available in the market.

Technical Data

Max. lifting moment - 81.6mt
Max. lifting capacity - 30000kg
Max. hydraulic outreach - 22.5m
Max. manual outreach - 25.0m
Max. outreach (with fly jib) - 32.4m
Slewing angle - ∞

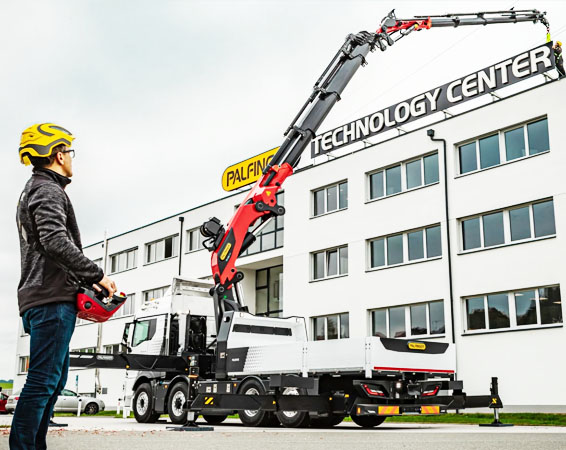

PK 1050 Tec

The PK 1050 TEC is an absolute highlight in the heavy-duty crane segment.

The PK 1050 TEC sets a new benchmark in its class, combining immense lifting power with cutting‑edge smart control systems for precision and ease of use.

95 mt lifting capacity with 37 m outreach
Fast, sensitive operation with SMART CONTROL tip technology
MEMORY POSITION & LEVELING ASSISTANT simplify handling
DPS‑C system maximizes lifting power in all positions
Versatile for steep height work or horizontal access through tight spaces

Technical Data

Max. lifting moment - 95.0mt
Max. lifting capacity - 30000kg
Max. hydraulic outreach - 22.4m
Max. outreach (with fly jib) - 37.2m
Slewing angle - Continuous
Slewing torque - 9.1

Stabilizer spread (std) - 8.8m
Fitting space required - 1.72m
With Folded - 2.55m
Max. operating pressure - 385bar
Recommended Pump Capacity - From 110 l/min to 130 l/min
Dead weight (std.) - 7480kg

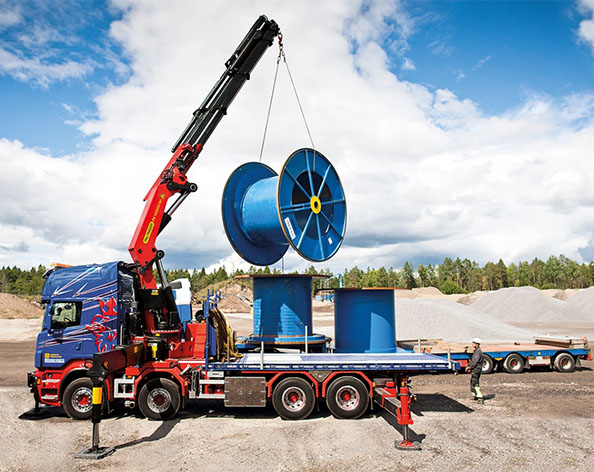

PK 110002 SH HIGH PERFORMANCE

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version. Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
